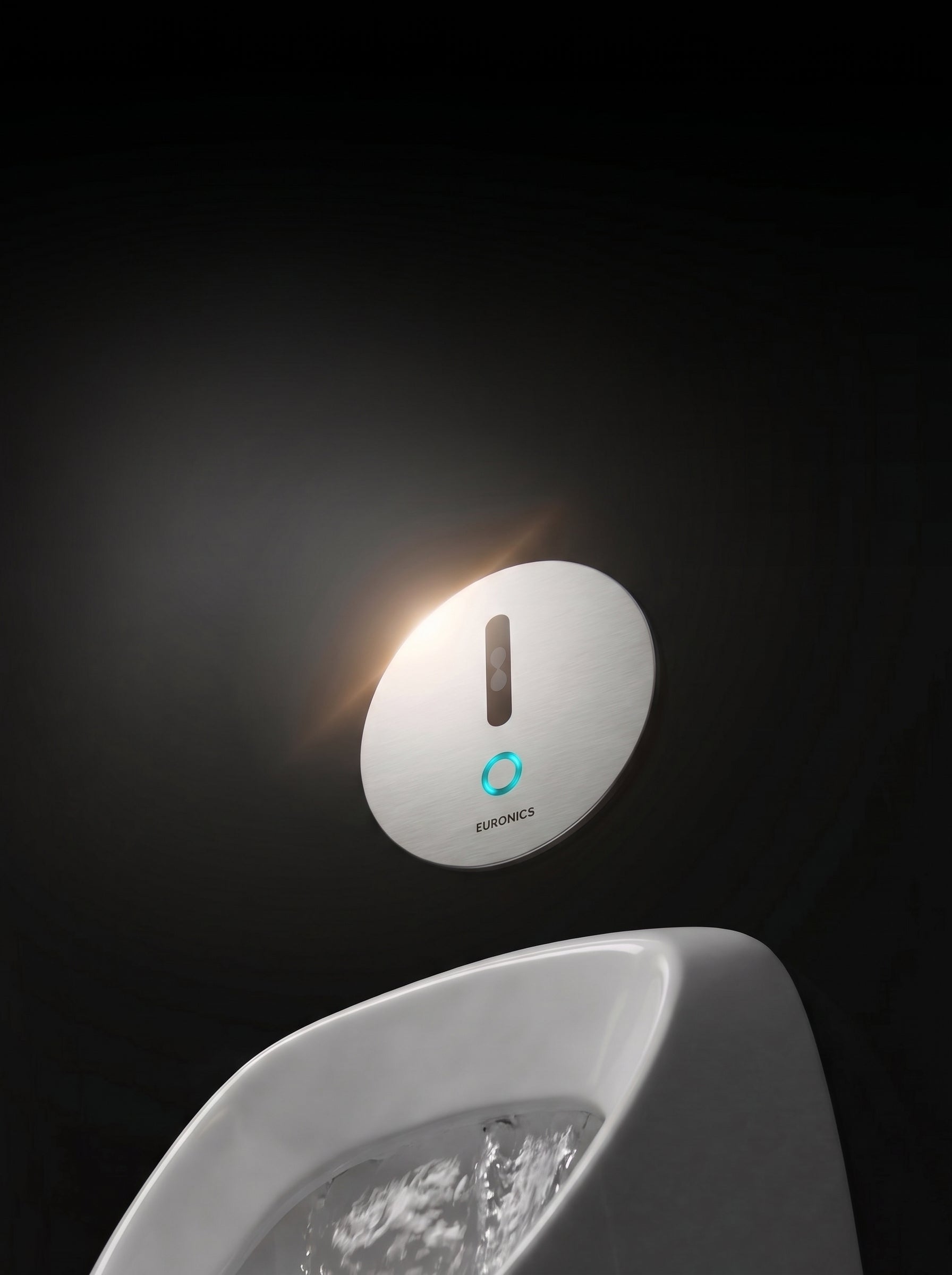

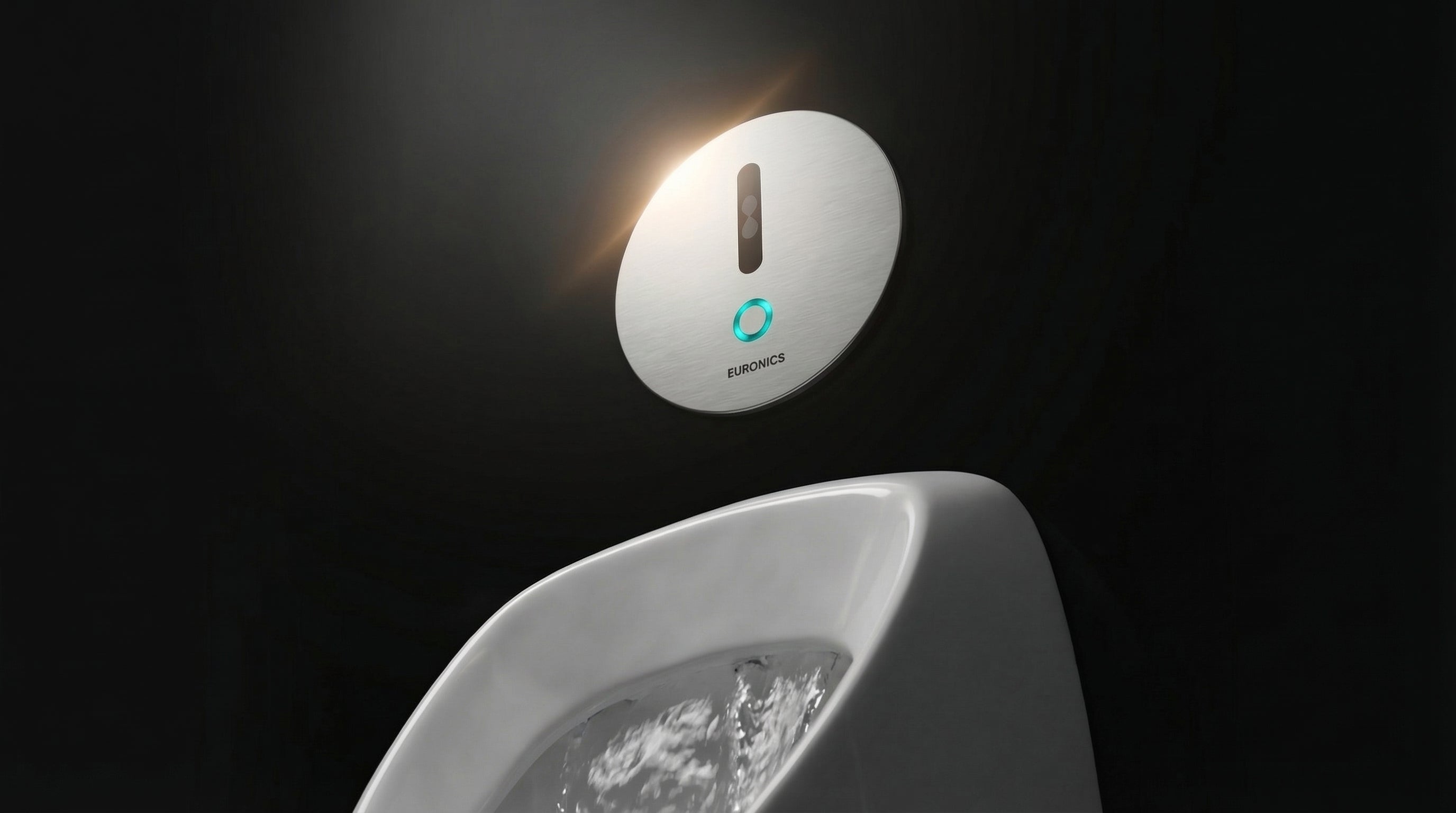

An automatic urinal sensor uses an infrared sensor in the front plate to detect user presence. When a user steps in front of the urinal, the sensor registers the presence; when the user steps away, the sensor triggers a solenoid valve that releases a measured volume of water to flush the urinal. The whole operation is touch-free and automatic.
Explore
Our Urinal Sensor Range
EW01(1 Bar)Auto Flush Valve with Infra-Red Sensor
From Rs. 15,316.00
Rs. 16,095.20
EW01(2 Bar) Auto Flush Valve with Infra-Red Sensor
From Rs. 15,316.00
Rs. 15,316.40
EW01(3 Bar) Auto Flush Valve with Infra-Red Sensor
From Rs. 15,316.00
Rs. 15,316.40
How does an automatic urinal sensor work?
Are urinal sensors suitable for high-traffic washrooms?
Do automatic urinal flushers save water?
How are urinal sensors installed?
What maintenance is required for urinal sensors?
Battery-operated or AC-powered urinal flushers — which should I choose?
Are recessed urinal flushers better than exposed ones?
What is the difference between a urinal sensor and a WC sensor flusher?
Explore More
An Automatic urinal sensor, known as an automatic urinal flusher, or sensor flush valve is a touchless flushing system that detects user occupancy using a sensor and flushes the urinal automatically when required. The system helps in maintaining better hygienic conditions in the washroom, helps save water, odor management, and also ensures that washrooms are constantly maintained.
Euronics offers a complete set of urinal sensors and WC sensors to match all requirements, including recessed or exposed installations, battery operated or AC operated options, and finishes in chrome, NERO matte black, and Ambria gold. Each unit is designed to be manufactured and serviced in India keeping in mind the unique Indian water pressure systems and usage levels with false trigger avoidance for passing traffic.
Types of Urinal Sensors & Automatic Flushers Available
There are varieties of automatic urinal flushers that have been designed based on the purpose of construction, location of installation, and method of maintenance. There are types of urinal sensors and WC sensor flushers available from Euronics.
Recessed Sensor Urinal Flushers
Recessed sensor urinal flushers are installed within the wall, while the sensor remains the only visible part from the outside. This design option is recommended for high-end commercial projects and infrastructure where appearance and durability are priorities. Recessing flushes into the wall ensures protection of inner mechanisms, fewer visual distractions, and ease of cleaning.
- Best suited for: airports, corporate offices, hotels, malls, hospitality projects, premium washrooms.

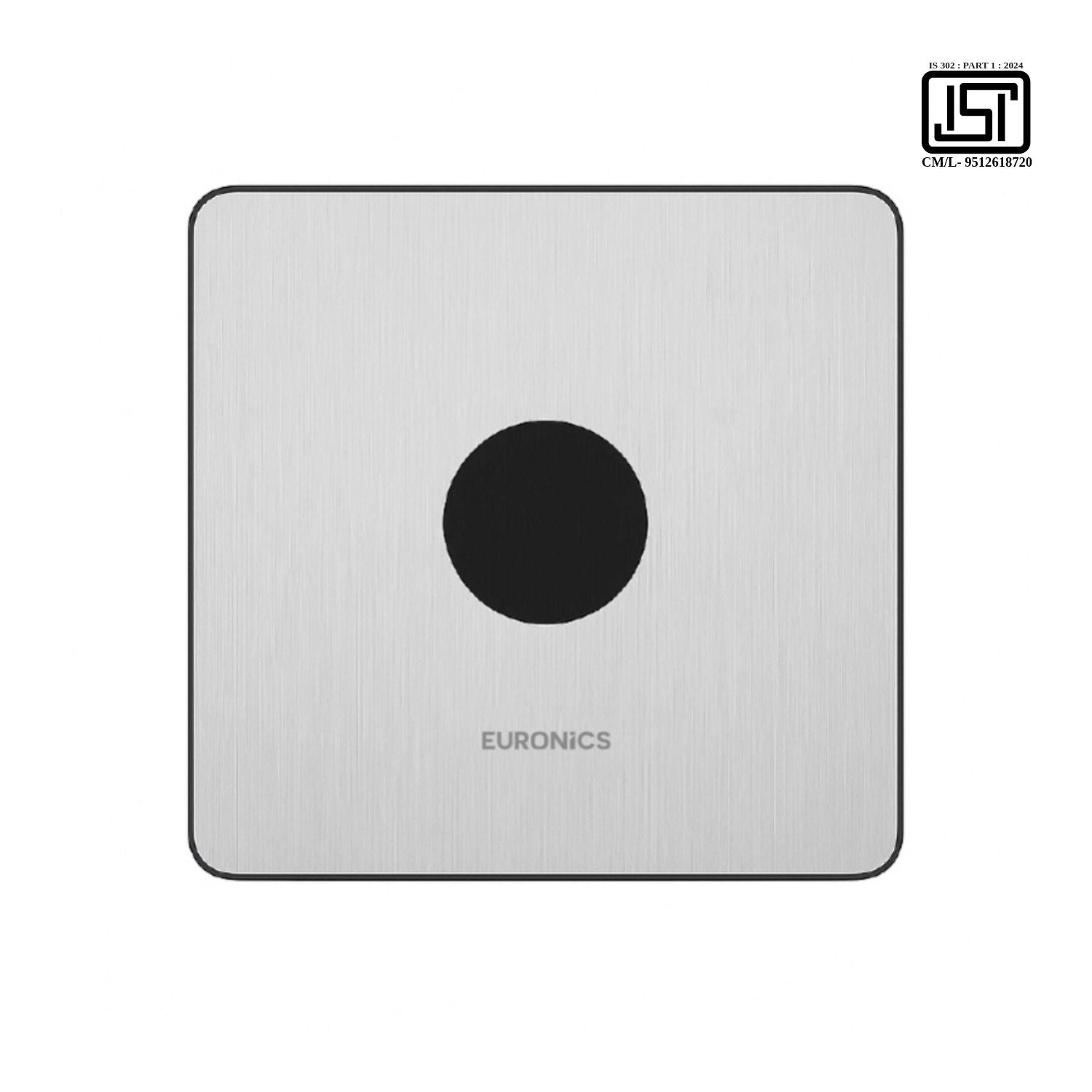

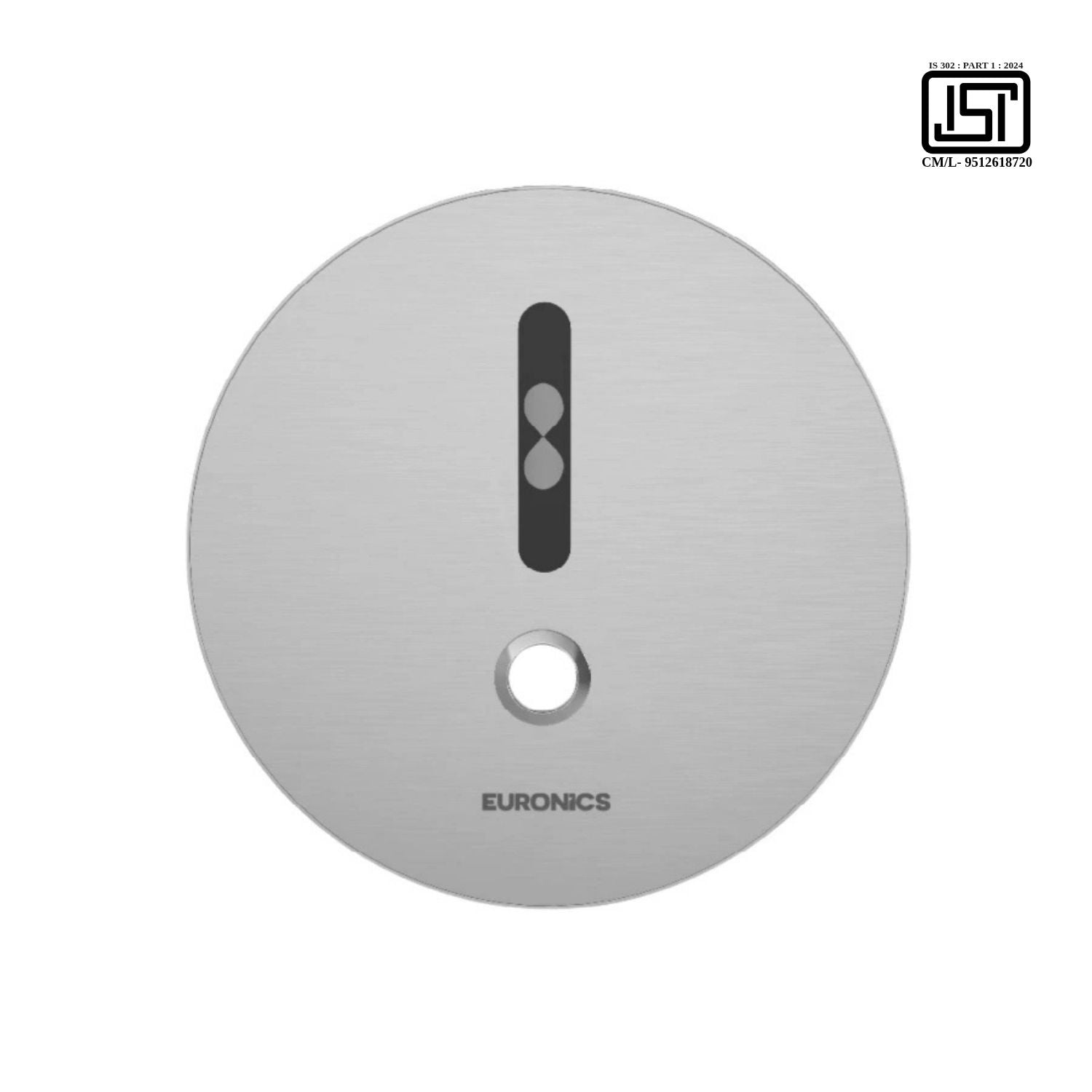

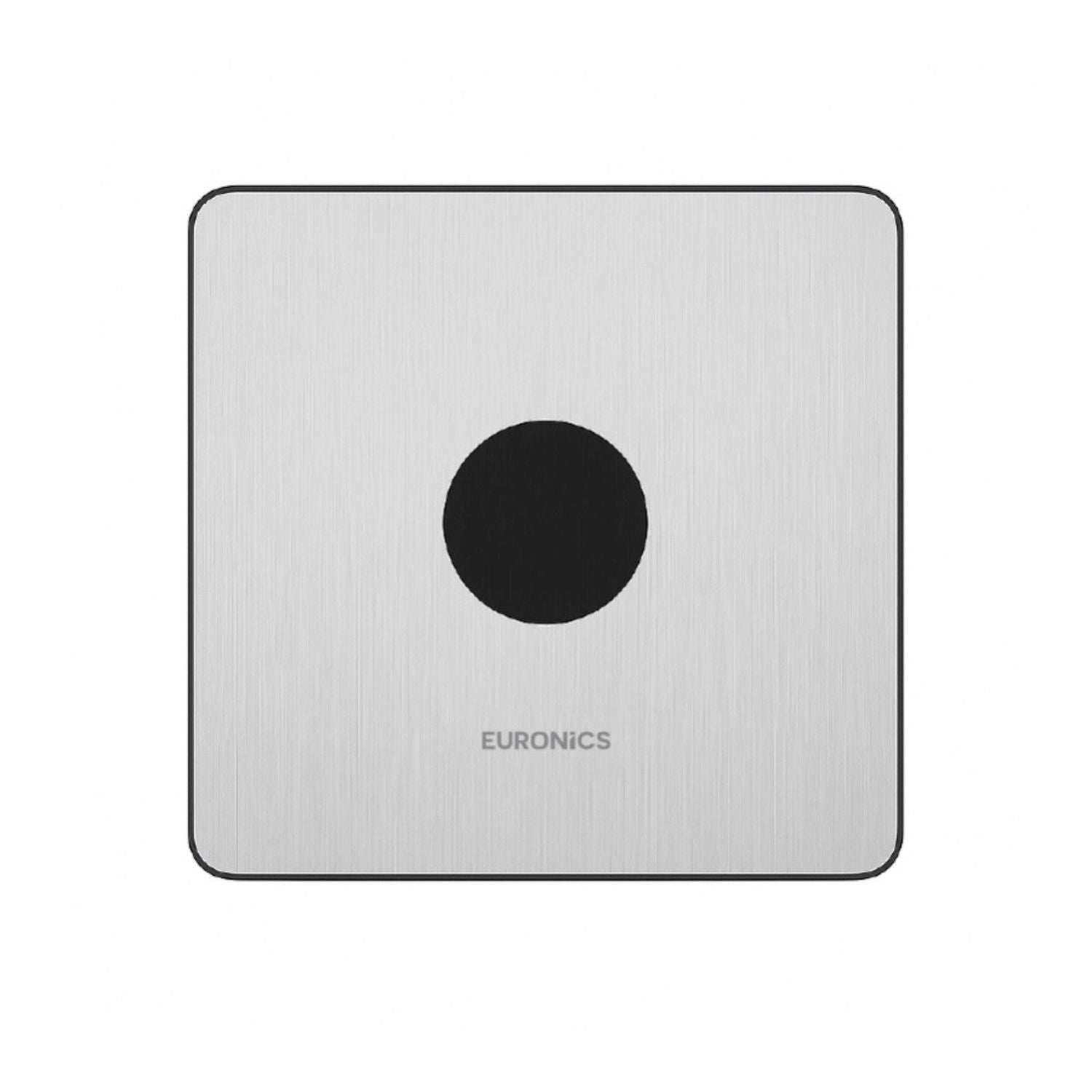

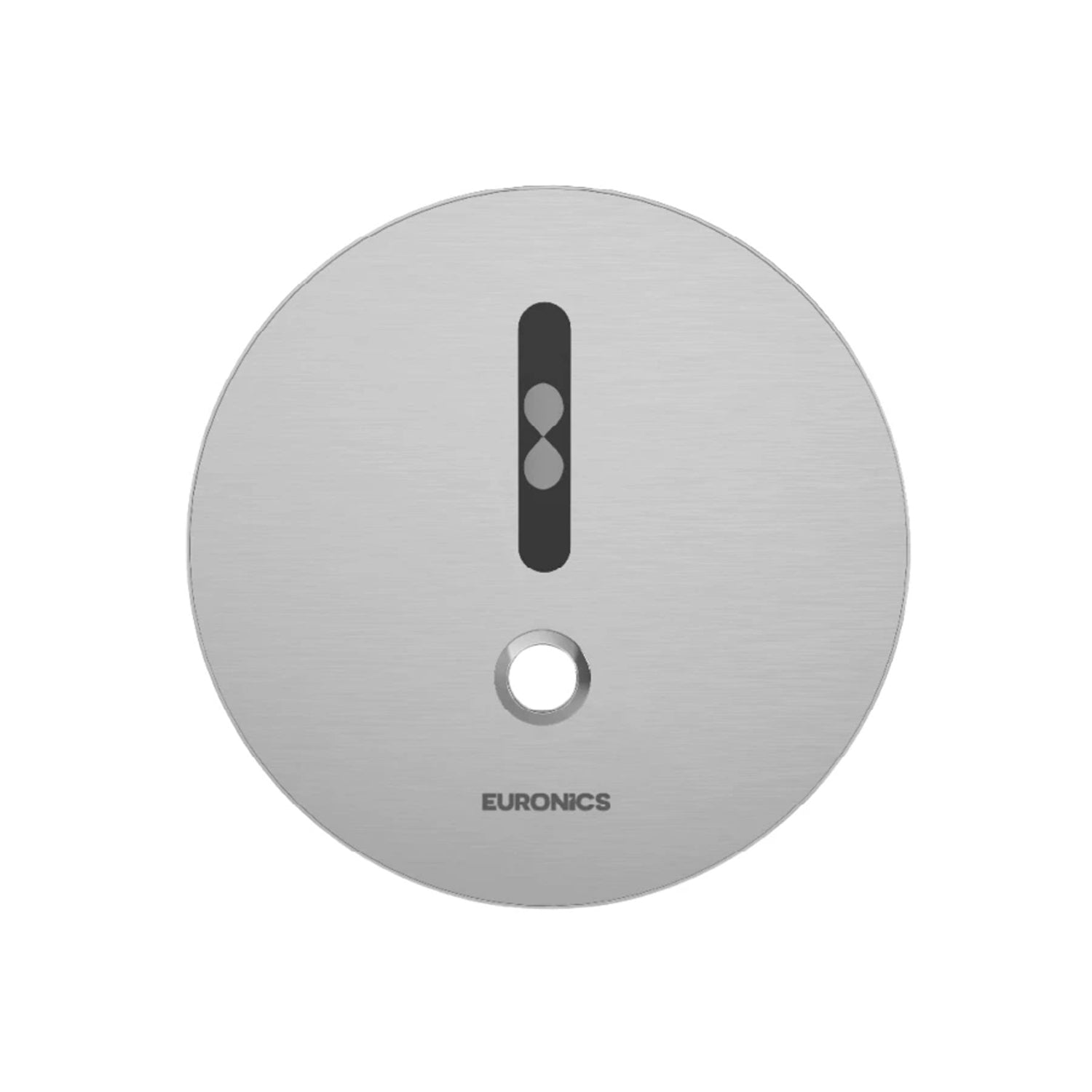

- Euronics models: Sensor Urinal Flusher Recessed (EU77BE), Sensor Urinal Flusher Recessed (EU54BE), EW01 Sensor Toilet Flusher, Sensor Urinal Flusher Recessed NERO (BEU77BE, BEU54BE), Sensor Urinal Flusher Recessed Ambria (GEU77BE, GEU54BE).

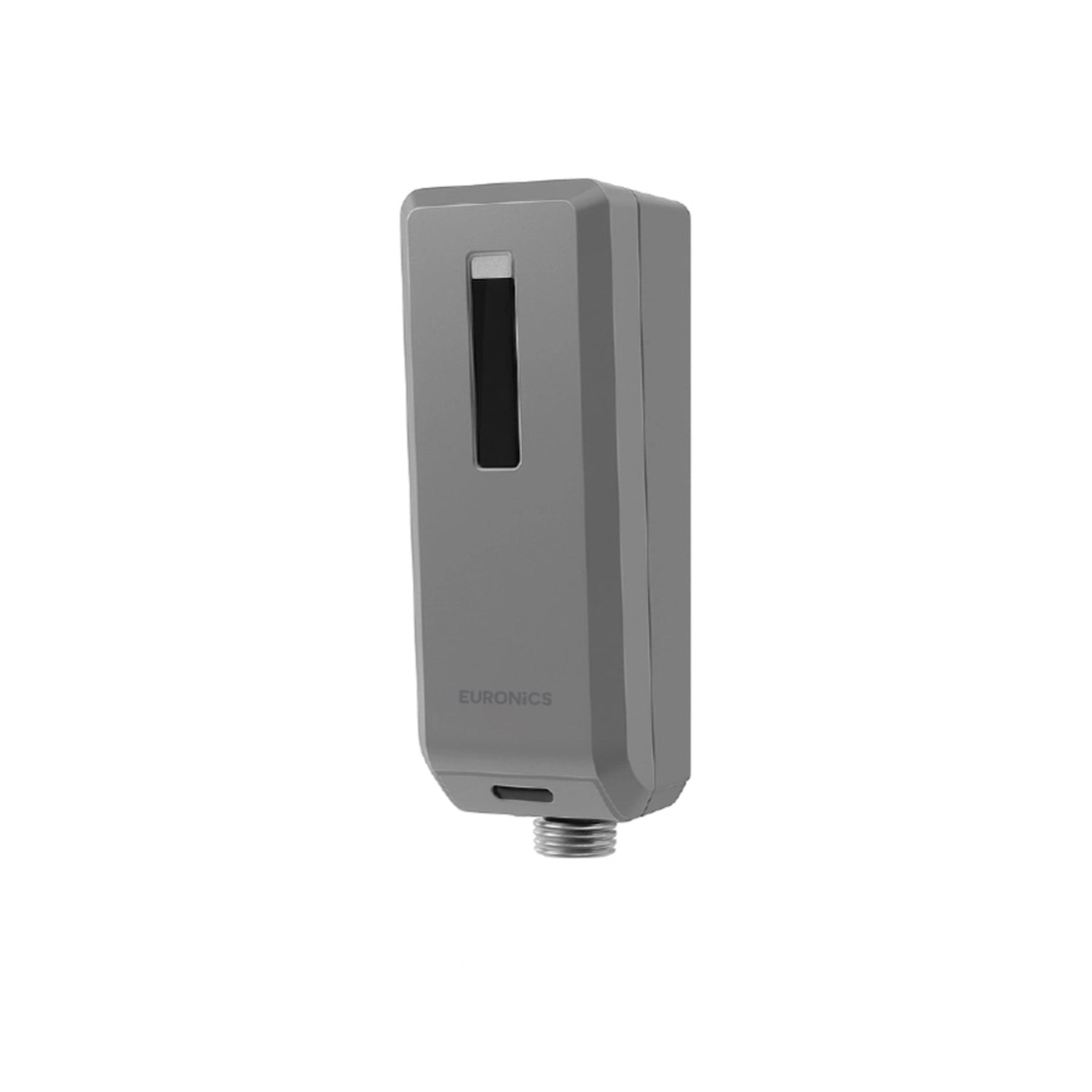

Exposed / Outwall Urinal Flushers
This type of sensor urinal flusher is mounted on the surface and features sensor and flushing mechanisms attached to the wall. This flusher is perfect for retrofit projects and industrial washrooms when drilling holes in the wall is impractical. Access for maintenance becomes much easier because of this design feature.
- Best suited for: industrial washrooms, retrofit constructions, factories, public restrooms, and commercial premises.
- Euronics models: Outwall Urinal Flusher (EU03), Outwall Urinal Flusher NERO (BEU03).

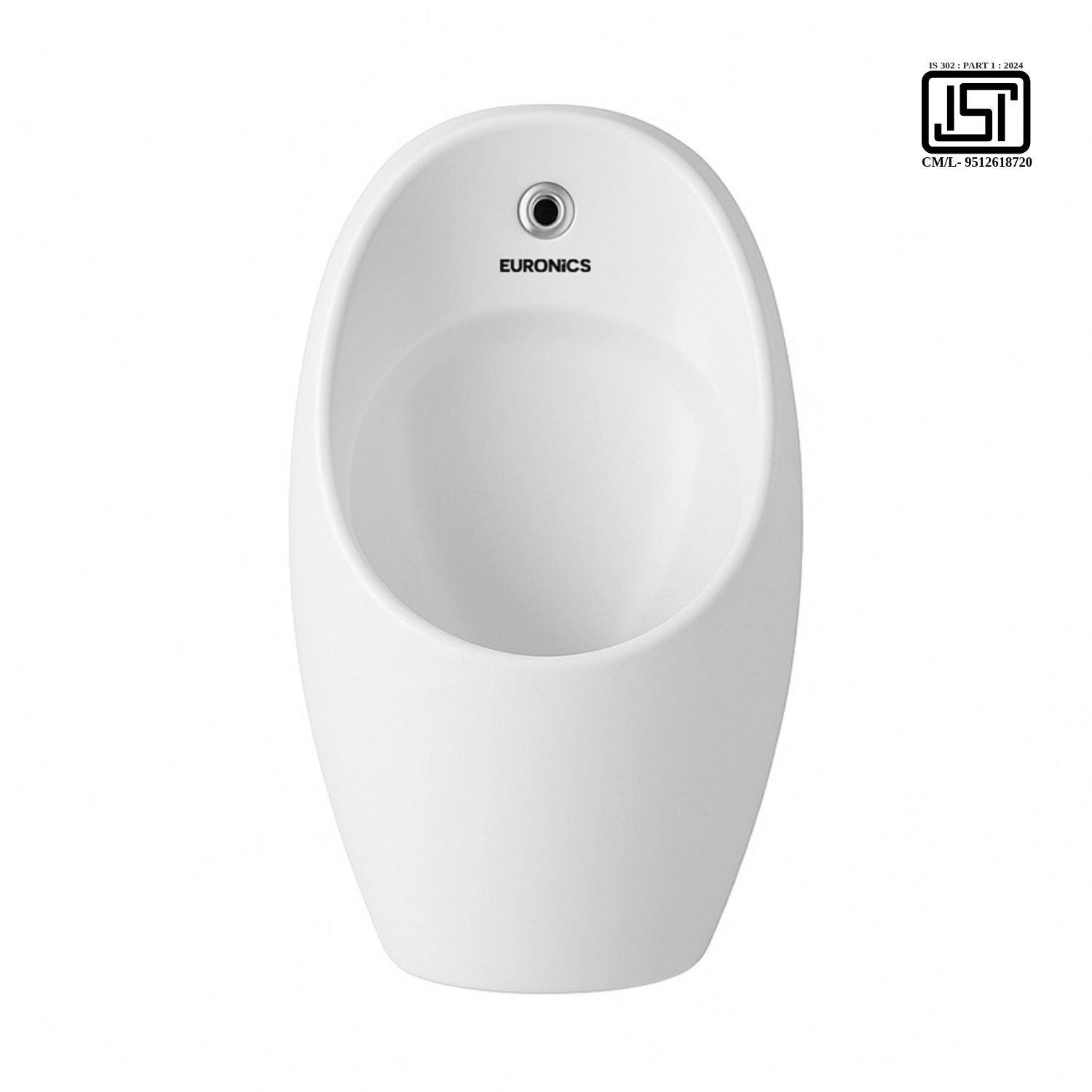

Urinals with Inbuilt Automatic Flusher
One piece urinals featuring built in sensor flusher as one complete unit. The design facilitates plumbing and sensor connections and ensures aesthetic integration of the unit.
- Best suited for: New builds, modern offices, IT parks, hotels.
-
Euronics models: Urinal with Inbuilt Automatic Flusher (KUF).
Sensor WC Flushers (Auto Flush Valves)
Sensor WC flushers control automatic flushing of the water closets using infrared sensors, thereby eliminating manual operation and ensuring better cleanliness of WC areas.
- Best suited for: Hospitals, airports, shopping malls, public restrooms, hotels.
-
Euronics models: Sensor Toilet Flusher / Auto Flush Valve (EW01), Sensor Toilet Flusher Ambria (GEW01).
Technical Specifications of Euronics Urinal Sensors & Flushers
| Attribute | Specification |
|---|---|
| Product Type | Sensor urinal flusher / Outwall urinal flusher / WC sensor flusher |
| Sensor Technology | Self Flush Infra-Red Sensor + Manual Push Button |
| Sensor Detection Range | Up to 65 cm — accurate without false triggers |
| Power Source | Battery-operated / AC-powered (hardwired) |
| Mounting Type | Recessed (concealed) / Outwall (surface-mounted) |
| Operating Pressure | 1 Bar to 3 Bar |
| Flush Volume | Approximately 0.4 litres per flush (urinal) |
| Material | Stainless steel & Plastic steel face plate |
| Finish Options | Chrome / NERO matte black / Ambria gold |
| Application | Commercial, institutional, hospitality, and industrial washrooms |
Benefits of Automatic Urinal Sensors & Flushers
- Water conservation: automatic flushing limits water usage per flush as opposed to manual flushing.
- Sanitation purposes: eliminates need for physical contact with any flush handle.
- Constant odor control: automatic flushing ensures every use is followed by a flush, eliminating under flushing.
- Reduced reliance on maintenance staff: automatic systems require less supervision due to reduced abuse.
- Deter vandalism: installation of sensors and flush mechanisms prevents access to inner parts of urinals.
- Supports green buildings: reduces water usage through controlled volume flushing and hence earns water efficiency credits.
-
Accurate sensing: sensor with detection range up to 65 cm ensures true use of urinals.
Manual Urinal Flusher vs Automatic Urinal Sensor Practical Comparison
| Evaluation Parameter | Manual Urinal Flusher | Automatic Urinal Sensor |
|---|---|---|
| Hygiene Control | Requires physical contact | Completely touch-free |
| Water Usage | User-dependent and inconsistent | Controlled and optimised |
| Odour Management | Inconsistent flushing | Consistent post-use flushing |
| Maintenance Load | Higher due to misuse and under-flushing | Lower and predictable |
| High-Traffic Suitability | Limited | Highly suitable |
| Vandal Resistance | Lever exposed and prone to wear | Recessed models highly resistant |
| Long-Term Cost Control | Unstable | More manageable |
| Green-Building Credits | Limited contribution | Supports LEED & IGBC water efficiency |
Industry Use Cases for Euronics Urinal Sensors
- Multi outlet supermarket chains: automatic urinal sensors provided uniform hygiene and minimized water wastage through misuse at busy times.
- Luxury hotel chains: recessed urinal flushers with chrome finish, NERO matte black or Ambria gold finish ensure premium washrooms hygiene and odor removal.
- Office space washrooms: touch free urinal sensors ensure there are no maintenance issues and meet modern standards.
- Airports and metro stations: recessed urinal sensors with high foot traffic and AC power source ensure reliability and long term durability.
- Hospitals: sensor WC flushers and urinal sensors limit touch points and contamination in clinical washrooms.
- Factories and industrial complexes: outwall urinal flushers in factory washrooms are easier to maintain.
Why Choose Euronics Urinal Sensors & Flushers Over Other Brands
- Own design and manufacturing: designed, manufactured, and quality assured in-house, without importing rebadged products.
- 25+ years of industry experience: over two decades building washroom automation, with the brand, warranty, and service under one roof.
- Every urinal and WC flush format: recessed, exposed/outwall, inbuilt-urinal, and WC sensor flushers, so one range covers new builds, retrofits, and industrial washrooms.
- Built for Indian conditions: developed and serviced in India for local water pressure and voltage fluctuations, with accurate detection up to 65 cm and no false triggers from passing traffic.
- Design consistency across the building: chrome, NERO matte black, and Ambria gold models for a single specification across every floor.
- Specified by major enterprises: installed at Cisco, HCL Tech, Hero, Google, IBM, and Publicis Media, among many other commercial, healthcare, and hospitality sites.
-
Pan-India service with warranty and AMC: the largest spare-parts ecosystem and after-sales network, with warranty and AMC support.
Common Places Where Euronics Urinal Sensors Are Installed
- Transportation hubs including airports and metro stations
- Corporate offices and IT parks
- Hotels, malls, and retail complexes
- Hospitals and health care establishments
- Factories and industrial premises
- Schools, colleges and government buildings
- Restaurants, banquet halls and food courts
