TRIMAX E5 | Hand Dryer Combo (3in1) | Brushless Motor + 95 m/s Airspeed
TRIMAX E5 | Hand Dryer Combo (3in1) | Brushless Motor + 95 m/s Airspeed
TRIMAX E5 | Hand Dryer Combo (3in1) | Brushless Motor + 95 m/s Airspeed
TRIMAX E5 | Hand Dryer Combo (3in1) | Brushless Motor + 95 m/s Airspeed
Euronics Industries

TRIMAX E5 | Hand Dryer Combo (3in1) | Brushless Motor + 95 m/s Airspeed

₹ 102,825
Tax included. Shipping calculated at checkout.
Color | Silver
Product Quantity
Quantity
B2B Enquiry
B2B Enquiry

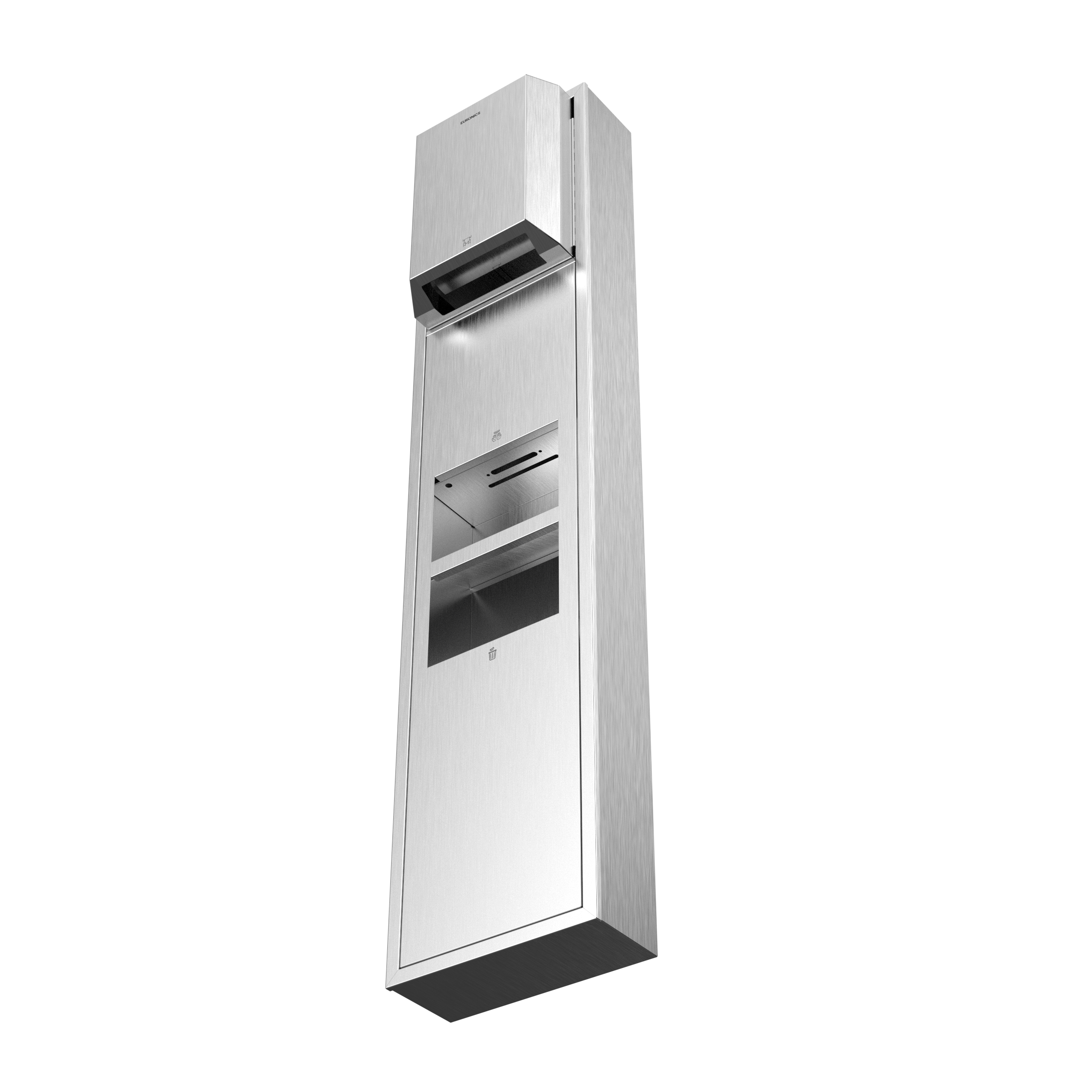

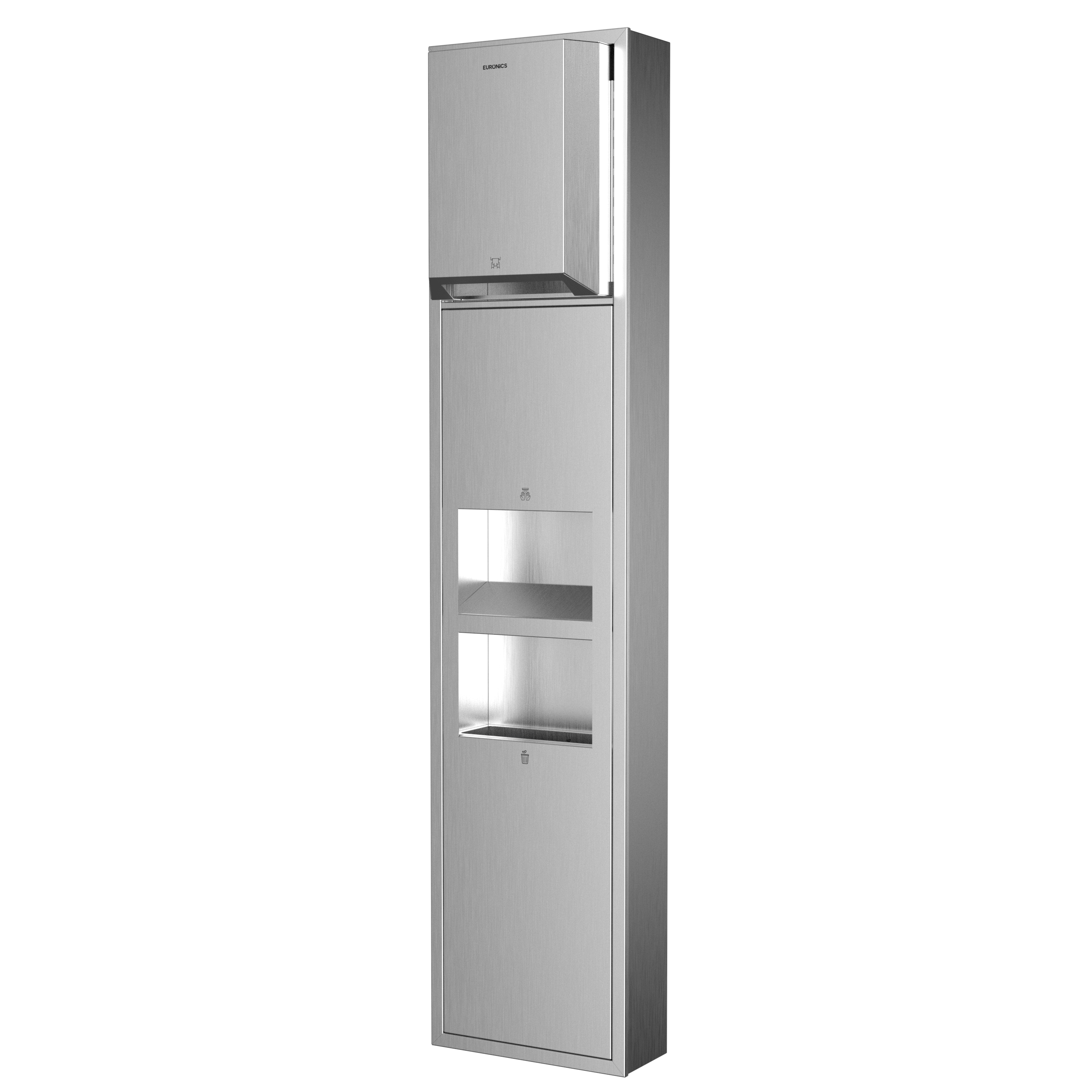

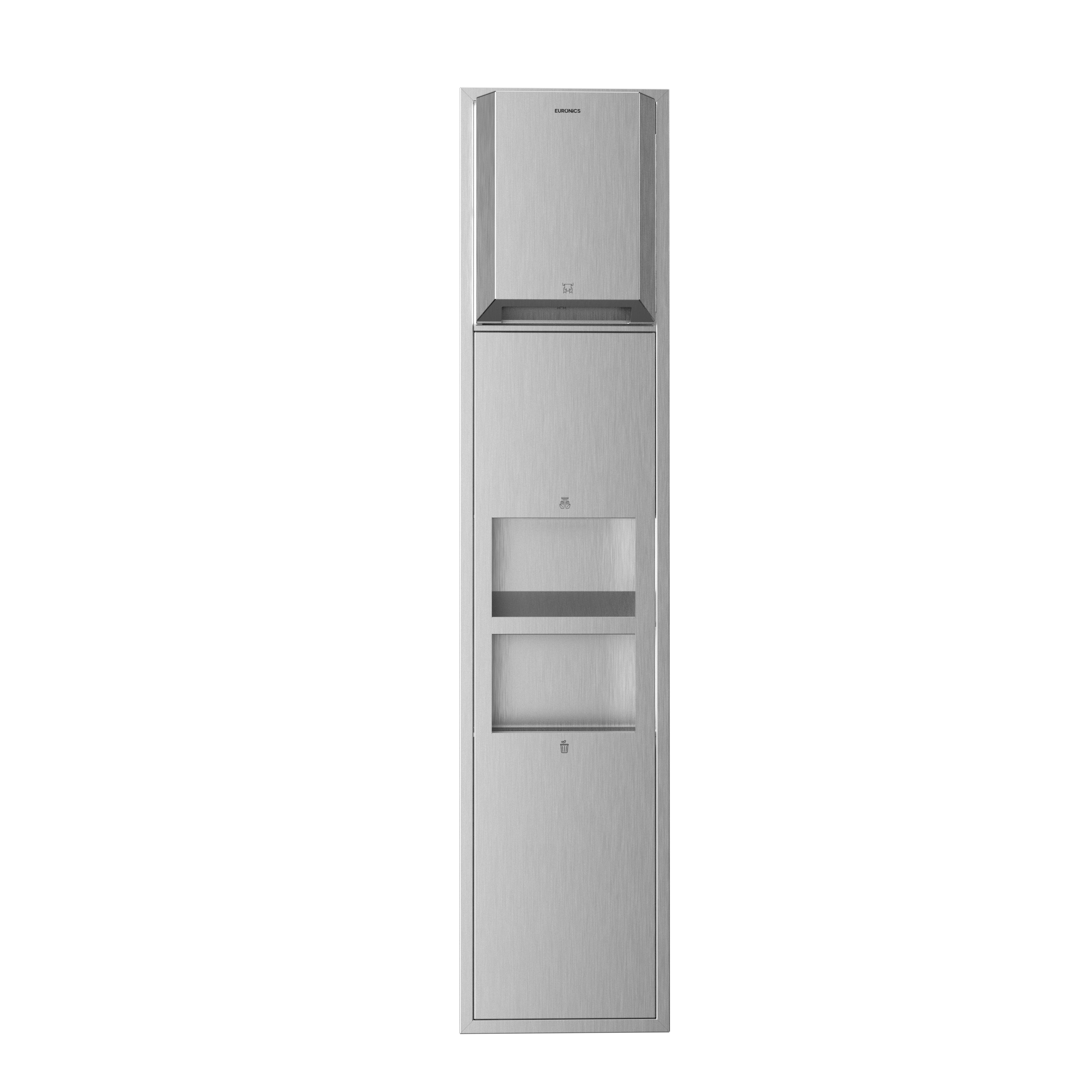

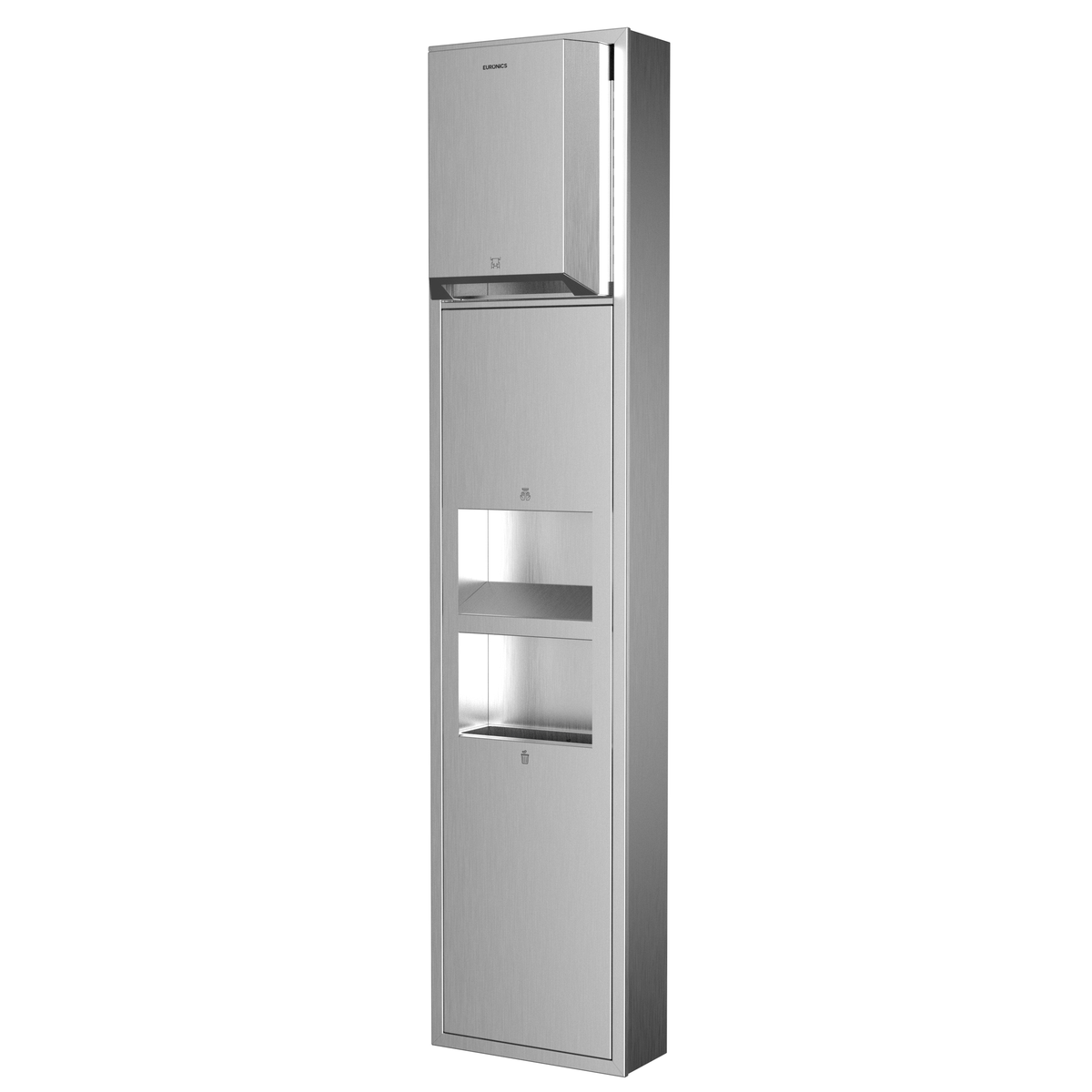

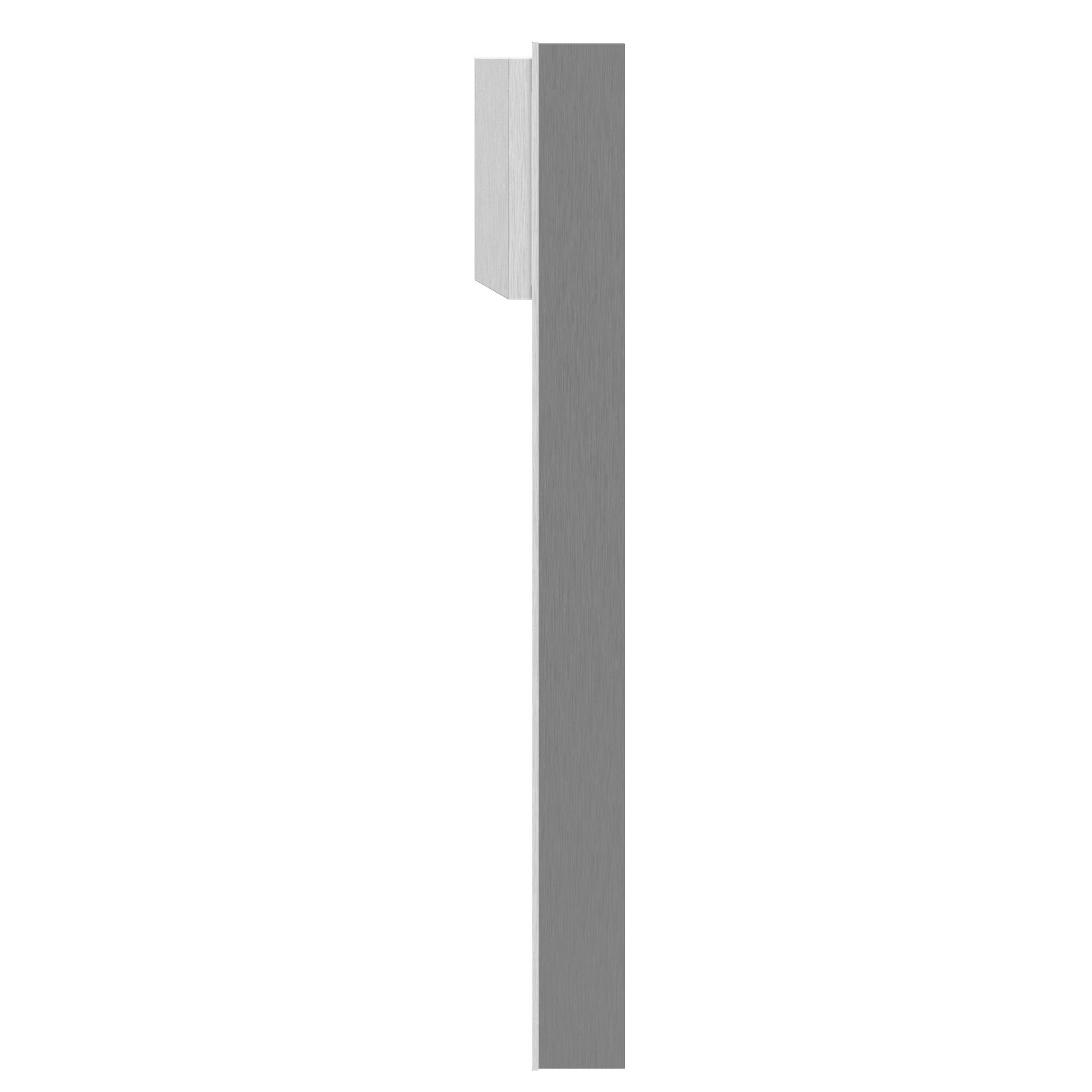

The TRIMAX E5 consolidates three washroom essentials — hand drying, paper towel dispensing, and waste disposal — into one surface-mounted stainless steel unit, reducing fixture clutter in high-traffic commercial washrooms. Its 304-grade stainless steel construction with satin finish is built for durability under continuous daily use.

The integrated hand dryer runs on a brushless motor at 25,000 RPM, generating a high-speed 95 m/s airflow with a blowing volume exceeding 270 m³/h at 1350W, powered by a sensor with a 12–15 cm detection range and rated IPX1 for washroom-safe operation. The automatic paper towel dispenser runs on electrical or battery power (4 × D-size alkaline batteries) for uninterrupted operation, backed by a 23-litre waste receptacle capacity to match high-footfall use.

Sized for a 376mm (W) x 1700mm (H) x 250mm (D) wall opening, the TRIMAX E5 is available in Nero and Ambria finishes. It carries a 2-year warranty on the brushless motor and a 1-year product warranty, making it a dependable all-in-one solution for corporate, hospitality, and institutional washrooms.

Technical
Specification Value
Model No. TRIMAX E5
Type Automatic Paper Towel Roll Dispenser Hand Dryer with Brushless Motor & Waste Receptacle
Mounting Surface Mounted
Construction 304 Grade Stainless Steel
Finish Steel, Satin Finish
Paper Dispenser Capacity Electrical or Battery Operated (4 x D Size Alkaline Batteries)
Waste Receptacle Capacity 23 Litres
Hand Dryer Power 1350W
Motor Speed 25,000 RPM
Blowing Volume > 270 m3/h
Air Speed 95 m/s
Sensor Range 12 cm - 15 cm
Protection Class IPX1
Wall Opening Required 376mm (W) x 1700mm (H) x 250mm (D)
Hand Dryer Motor Brushless
Warranty on Brushless Motor 2 year
Product Warranty 1 year
Finish Colors Nero, Ambria

Resources
Specifications
User-Manual
Q

What is a 3-in-1 washroom panel?
A

A 3-in-1 washroom panel integrates a hand dryer, paper dispenser, and waste receptacle into a single unit for efficient hygiene management.
Q

Where are 3-in-1 washroom panels commonly used?
A

They are widely used in airports, railway stations, corporate offices, malls, and other high-footfall washrooms.
Q

Are washroom panels suitable for compact washrooms?
A

Yes. Integrated designs are specifically created to maximize functionality in limited spaces.
Q

Are washroom panels built for heavy usage?
A

Yes. They are engineered for continuous use in high-traffic public environments.
Q

Do washroom panels reduce installation complexity?
A

Yes. Combining multiple utilities into one panel reduces installation time and wall modifications.
Q

Are washroom panels water resistant?
A

Yes. They are designed to withstand moisture, humidity, and frequent cleaning.
Q

Do washroom panels lower maintenance effort?
A

Yes. Centralized components simplify cleaning, inspection, and servicing.
Q

Can washroom panels be customized?
A

Yes. Panels are available in 2-in-1, 3-in-1, and custom configurations based on project needs.
Q

Are washroom panels suitable for commercial buildings?
A

Absolutely. They are designed specifically for commercial, institutional, and public washrooms.
Q

How long do Euronics washroom panels last?
A

With regular cleaning and basic upkeep, they offer a long operational life even in demanding environments.
